- Front

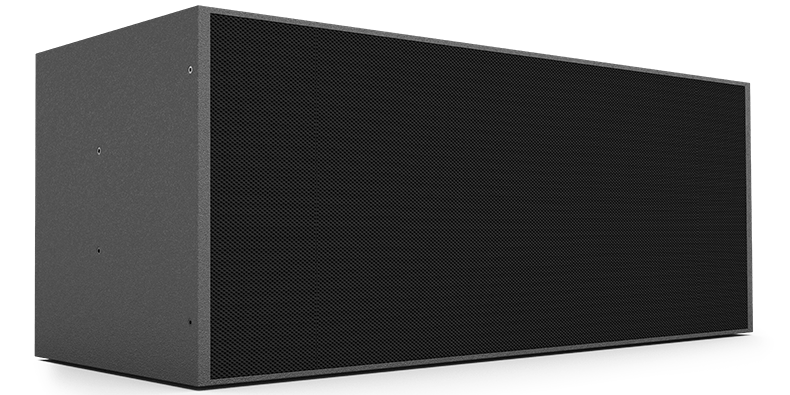

Syva Sub
Performance Art
Bass reflex, 12''
L-VENTS
Introduced for the first time in 2007 in the SB28, the laminar venting technology is a progressive vent design that drastically minimizes turbulence noise leading to an increase in output capability. All current L-Acoustics loudspeaker enclosures with low-range capacities feature L-Vents.
| Max SPL | 128 dB |
| Low frequency limit | 27 Hz |
| Transducers | LF : 1 x 12" |
| Weight | 27 kg / 60 lb |
| Directivity | Standard |
EXTENSION
Clear and solid fundations with infra-low frequency limit
SHARP
Clear low-frequency power with L-VENTS™
SLEEK
Designed to melt into any venue decor
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
Infra low frequency subwoofer
amplified by LA2Xi / LA4X / LA8 / LA12X
| Low frequency limit (-10 dB) | 27 Hz ([SYVA SUB_100]) |
| Maximum SPL1 | 128 dB ([SYVA SUB_100]) |
| Nominal directivity (-6 dB) | Standard |
| Transducers | 1 × 12″ cone driver |
| Acoustical load | bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 × 4-point speakON |
| Weight (net) | 27 kg / 60 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
