Electroacoustic specs
2-way passive enclosure
amplified by LA7.16i / LA2Xi / LA4X / LA12X
| Usable bandwidth (-10 dB) | 60 Hz – 20 kHz ([SOKA_60]) 100 Hz – 20 kHz ([SOKA]) 200 Hz – 20 kHz ([SOKA_200]) |
| Maximum SPL1 | 124 dB ([SOKA_60]) 130 dB ([SOKA]) 133 dB ([SOKA_200]) |
| Nominal directivity (-6 dB) | vertical: +5°/-21° |
| Transducers | MF: 9 × 3.5″ cone drivers |
| Acoustical load | LF: closed enclosure |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 x 4-point screw terminal |

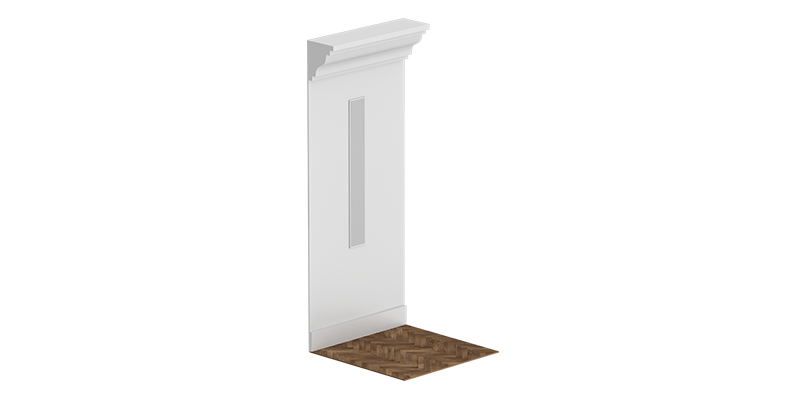

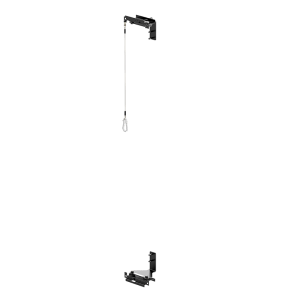

| Rigging and handling | Soka inWall includes all elements for integration in plain walls |
| Weight (net) | Soka inWall: 11,7 kg / 25,8 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
