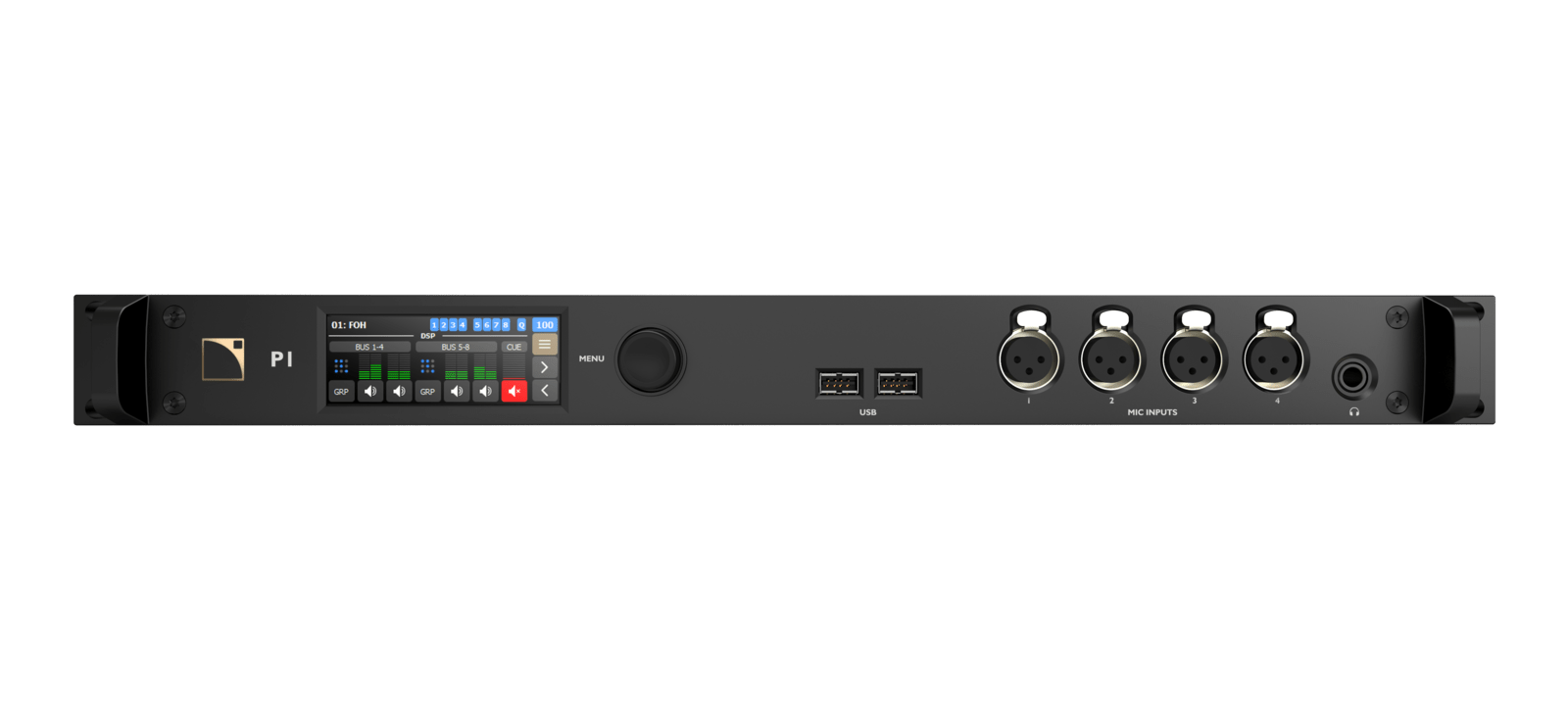

- Front

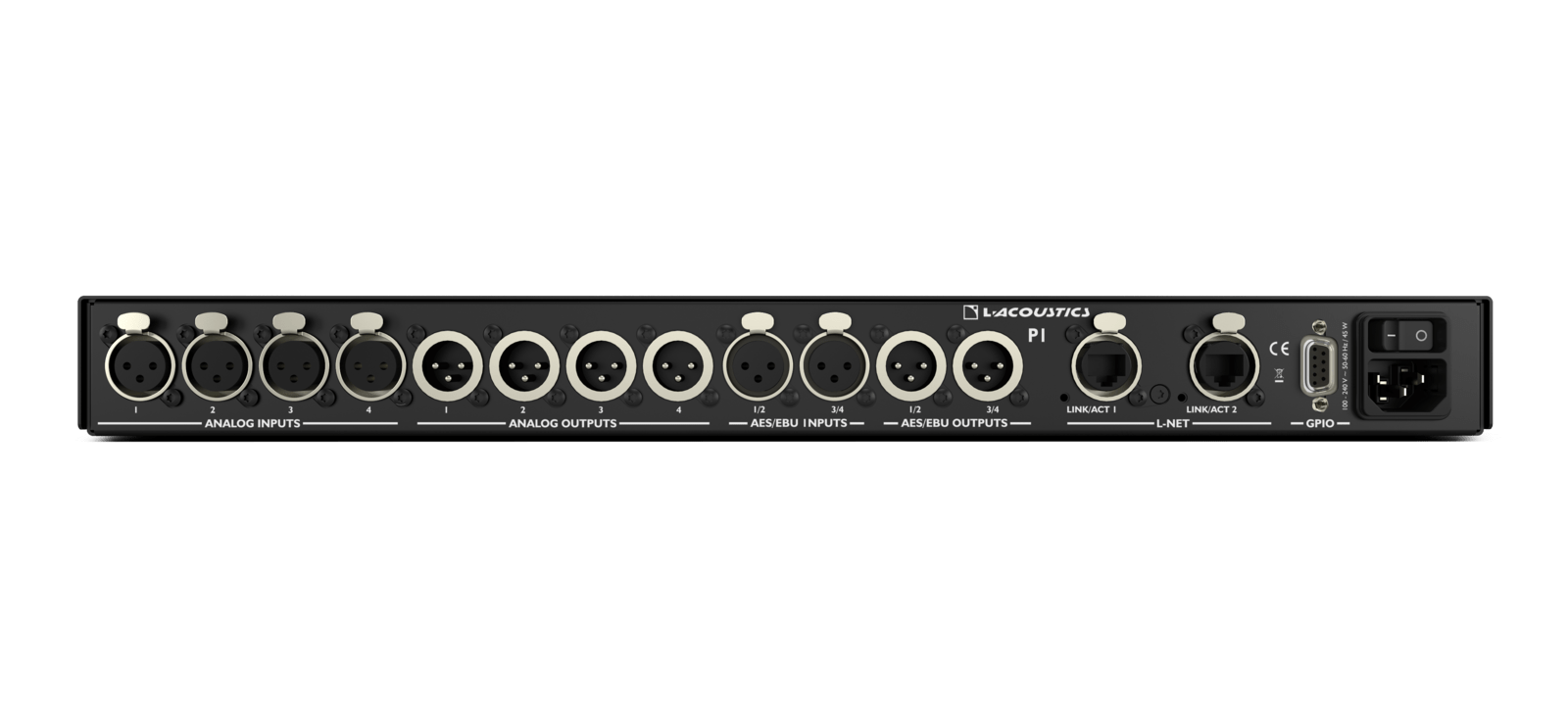

- Back

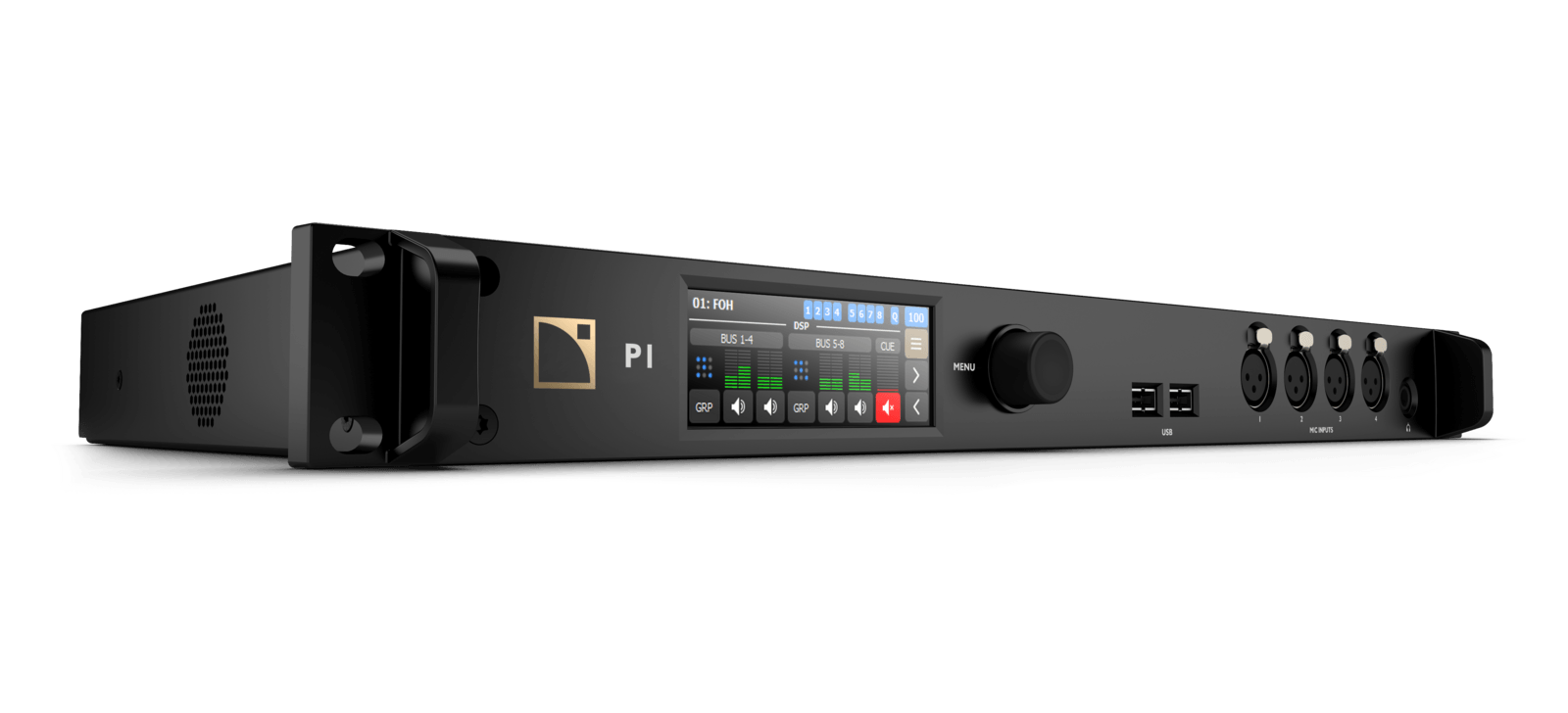

- Side
P1
AVB processor and measurement platform
| Architecture | 20 x 16 (+ headphones) |
| Busses | 8 DSP busses + Cue Bus |
| I/O | 8 Milan-AVB I/O, 4 Line I/O, 4 AES I/O, 4 Mic/Line inputs (48V) |
| Processing (per bus) |
Gain, mute, polarity, delay 16 EQ filters Clip protection |
| Height | 1U |
| Network | Milan-certified with seamless network redundancy |
Inspiration
BYU Marriott Center Makes a Long Throw Look Easy with L-Acoustics K2 Professional Sound System
K Series
K2
KARA
KIVA II
LA12X
LA4X
Milan Manager
P1
Mazowsze National Ensemble Unveils State-of-the-Art 360° L-ISA Immersive Hyperreal Sound Experience Using the New L-Acoustics L Series
5XT
A10
KS21
L-ISA
L-ISA Processor II
L2D
LA7.16
LS10
P1
X12
X15
X8
“The Blue” Gets New K2 – Boise State’s Albertsons Stadium Achieves Stadium-Wide Sound from Compact L-Acoustics K2 Installation
A10i Focus
A10i Wide
A15i
K2
KARA II
KS28
LA12X
LA7.16
LS10
P1
Related Products
01
03
Need more information?
Check out our Documentation Center for more documents on this product.
Power supply
| Mains rating | 100 V - 240 V ( ±10%), 50-60 Hz |
| connector | Lockable IEC connector C13 with power on/off button |
DSP
| Digital Signal Processor (DSP) | Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
| Matrix Mixing | 20 inputs to 8 independant busses Mute, gain, PFL/AFL |
| Busses | 8 busses + cue bus |
| Processing per bus | Mute, gain, polarity Delay up to 4000 ms 16 EQ filters |
| Direct routing | From any input to any output |
| System tuning | Integrated measurement platform for M1 |
Latency
| Analog or AES/EBU | 0.5 ms pass thru |
| DSP propagation delay | 0.37 ms |
| Signal distribution | Time-aligned redundant audio |
Inputs
| Milan-AVB | 8 channels from 2 independant AVB streams on etherCONTM 1 Gb/s Sampling frequency: 48 kHz or 96 kHz |
| AES/EBU | 4 AES/EBU channels (2 x AES3) on 2 female 3-pin XLR |
| AES/EBU Sample Rate Converter (SRC) | Operating at 24 bit / 96 kHz |
| Analog line | 4 line channels on 4 female 3-pin XLR (rear) |
| Analog mic/line | 4 mic/line channels on 4 female 3-pin XLR (front) 48 V phantom power Gain 0 to 60 dB 2nd order highpass filter 40 Hz |
| Processing per input | Mute, gain, polarity, gang |
Outputs
| Processing per output | Mute, gain, polarity, gang |
| Analog line | 4 line channels on 4 male 3-pin XLR |
| Milan-AVB | 8 audio channels from 2 independent Milan-AVB streams Sampling frequency: 48 kHz or 96 kHz |
| AES/EBU | 4 AES/EBU output channels (2 x AES3) on 2 male 3-pin XLR Sampling frequency and word length: 96 kHz at 24 bits |
| headphones | Stereo Minimum load : 32 ohms |
Interface
| Display | 1 TFT color touchscreen display (320 × 120 px) |
| navigation | 1 encoding wheel with push button |
Remote control and monitoring
| Network connection | Dual-port Ethernet Gigabit interface Milan seamless dual network redundancy |
| L-Acoustics remote control software | LA Network Manager |
| General purpose inputs and outputs (GPIO) | 2 GPI + 2 GPO on DB9 female connectors |
| Third-party management solutions | QSC® / SNMP / Crestron® |
Operating conditions
| Temperature | 0º C / 32º F to +50º C / 122º F |
Features
| Signal generator | Sine wave, sine bursts, sweep, white noise and pink noise |
| Media player | Stereo output at 24 bit / 96 kHz |
Physical data
| Height | 1U |
| Weight | 3.7 kg / 8.2 lb |
| Protection rating | IP30 |
