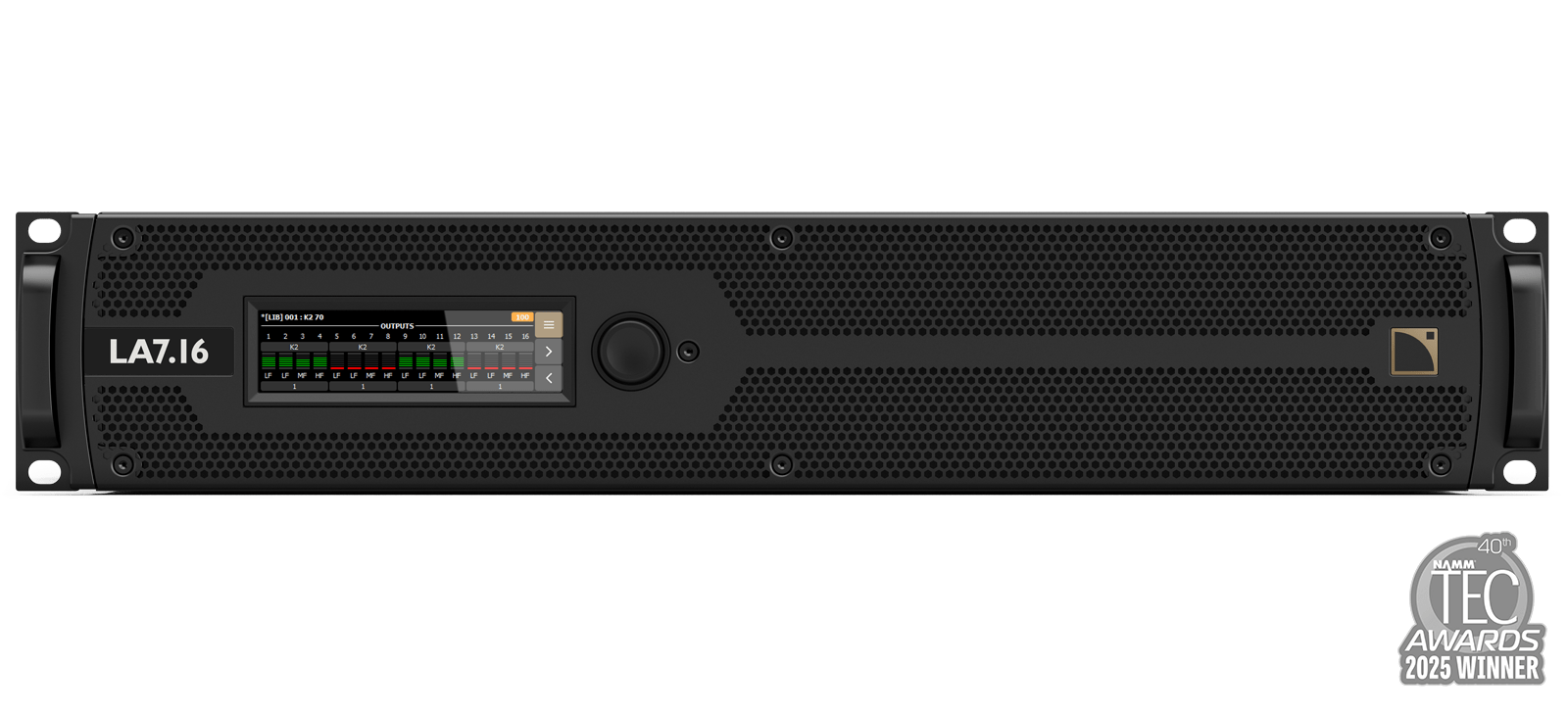

- Front

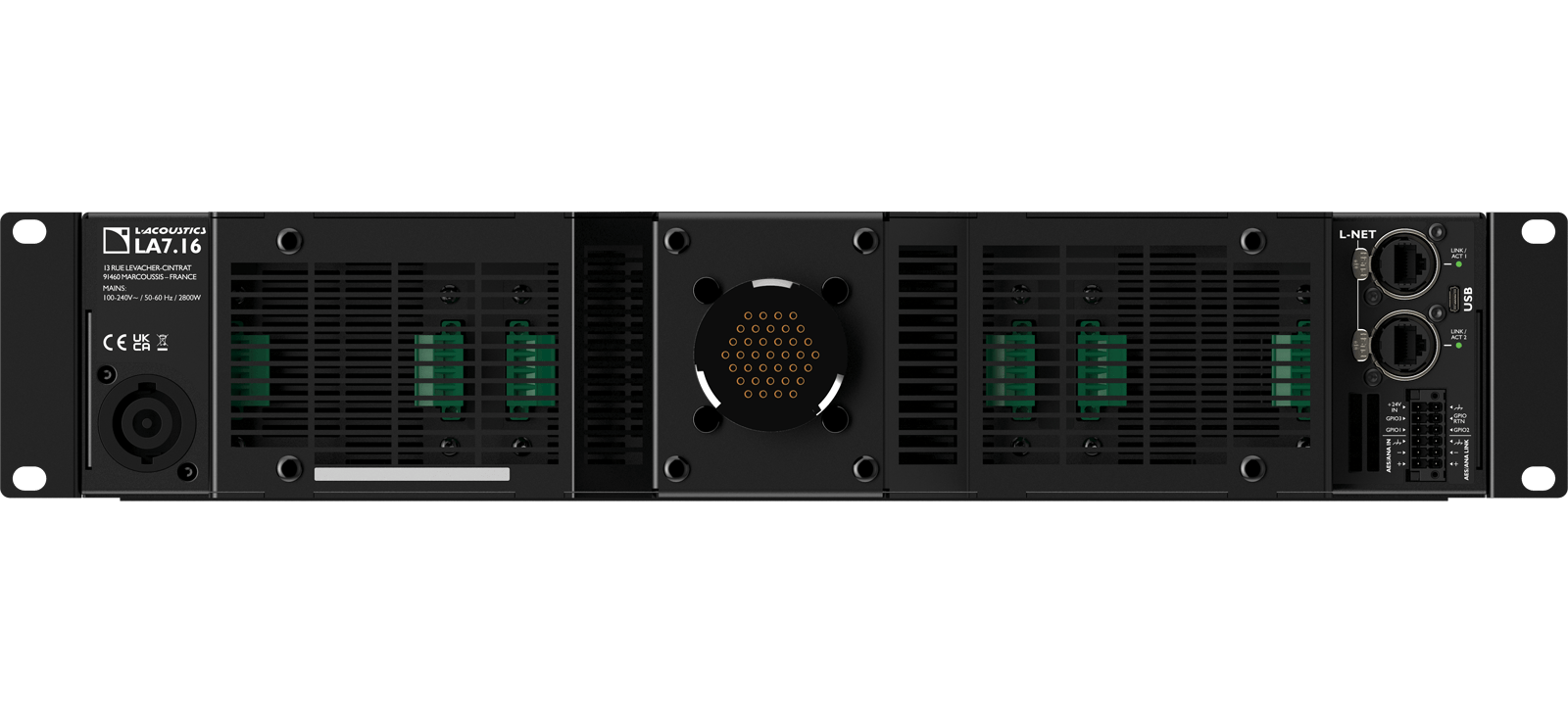

- Back

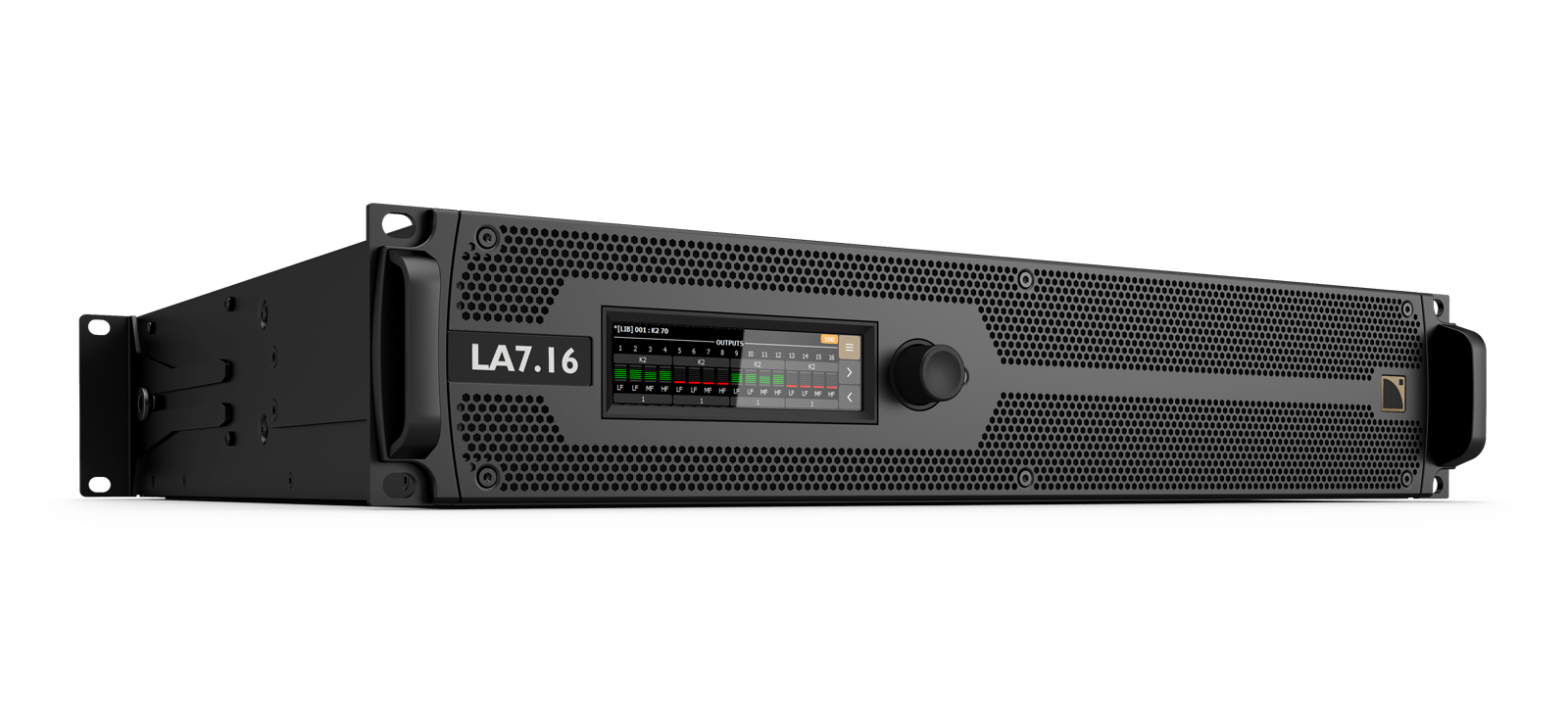

- Side
LA7.16
Multi-channel amplified controller
| Architecture | 16 x 16 |
| Output Power |
16 x 700 W at 16 ohms 16 x 1300 W at 8 ohms 16 x 1100 W at 4 ohms |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB, AES/EBU, Analog |
| Network | Milan-certified with seamless network redundancy |
Inspiration
L-Acoustics L-ISA Hyperreal Technology Optimizes Sound Localization and Clarity at Israel Expo Centre’s Tozeret Haaretz Series
KARA II
KARA/KS28
KS28
L-ISA
L-ISA Controller
L-ISA Immersive
L-ISA Processor II

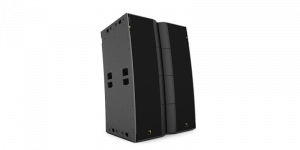

L2

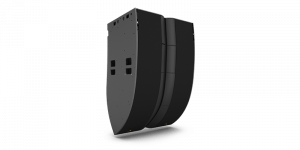

L2D
LA12X
LA7.16
SYVA
L-Acoustics L-ISA Technology Brings Clarity to New Swiss Mobile Comedy Venue
A Series
A10 Focus
A10 Wide
A15 Focus
A15 Wide
KS21
L-ISA
L-ISA Hyperreal
L-ISA Immersive
LA4X
LA7.16
X12
X8
L-Acoustics Powers the Future of Golf at TGL Presented by SoFi, First-of-Its-Kind, Prime Time, Team Golf League
5XT
A15i
KS21
LA2xi
LA7.16
X8
Related Products

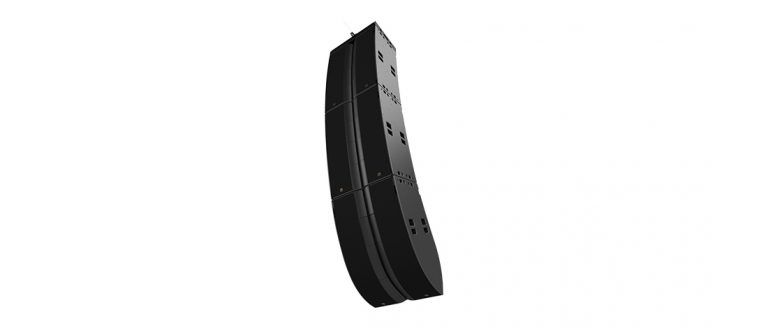

Related Trainings
Need more information?
Check out our Documentation Center for more documents on this product.
Amplification and power supply
| Amplification class | High-efficiency class D |
| Output power, all channels loaded | 16 x 1100 W at 4 ohms 16 x 1300 W at 8 ohms 16 x 700 W at 16 ohms |
| nominal power requirements | 16 A (200-240 V) 30 A (100-120 V) |
| mains connector | 32 A powerCON |
| Power supply model | Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
| Mains rating | 100 V - 240 V ±10%, 50-60 Hz |
| External DSP backup voltage input | 24 V DC |
DSP
| Digital Signal Processor (DSP) | Gen.5 Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
| I/O routing | 16 x 16 routing and summation matrix |
| Per output channel | Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing (LF contour, zoom factor), Air absorption compensation filters Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses Output delay from 0 to 1000 ms |
Technologies
| loudspeaker management | L-DRIVE advanced system protection |
| amplifier management | L-SMART adaptative power management |
Latency
| standard latency (analog/digital inputs) | 3.84 ms |
| low latency (analog/digital inputs) | 1.18 ms |
Inputs
| Milan-AVB | 16 channels from up to 16 streams (of up to 8 channels each) |
| AES/EBU | 2 channels AES/EBU (1 x AES3) with SRC |
| analog | 1 channel analog |
| connections | 2 etherCON 1 Gb/s I/O+ control 1 male 12-point terminal block (AES3 or Ana input/link + GPIO) |
Outputs

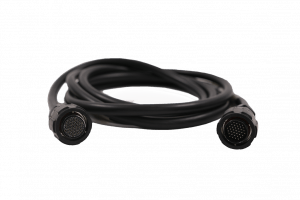

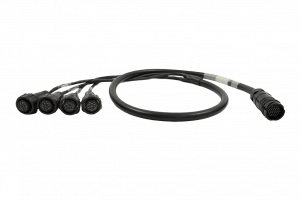

| loudspeaker connections | 1 SC32 connector |
Circuits protection
| Mains and power supply | Over and under voltage / over temperature / overcurrent |
| Power outputs | Overcurrent / DC / short circuit / over temperature |
Interface
| display/indicators | 1 TFT color touchscreen display (480 × 128 px) |
| Display | 1 encoding wheel with push button |
Remote control and monitoring
| L-Acoustics remote control software | LA Network Manager |
| General purpose inputs and outputs (GPIO) | 3 in/out on 12 point terminal block |
| Third-party management solutions | Q-SYS® / Crestron® |
Operating conditions
| Temperature | -5º C / 23º F to +50º C / 122º F |
Physical data
| Height | 2U |
| Weight | 15.8 kg / 34.8 lb |
Dimensions
