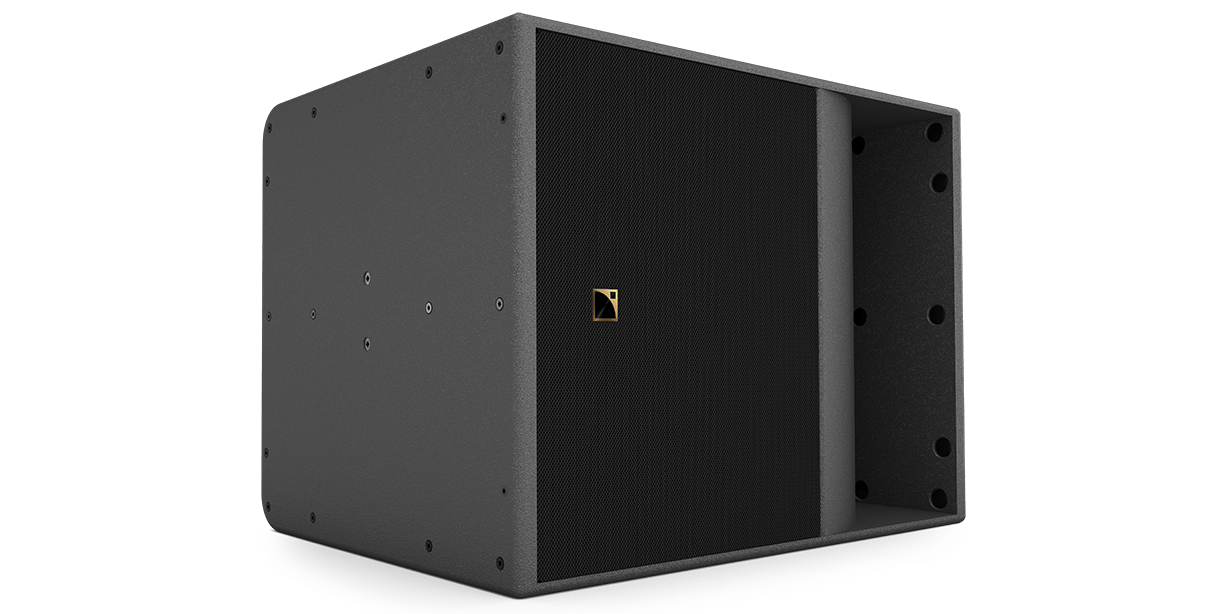

KS21i
High power subwoofer, 21"
| Max SPL | 138 dB |
| Low frequency limit | 29 Hz |
| Transducers | LF: 1 x 21" |
| Weight | 46 kg / 101 lb |
| Directivity | standard or cardioid configurations |
Inspiration
L-Acoustics A Series Delivers Superior Speech Intelligibility at Historic Bletchley Park’s New Fellowship Auditorium
Related Products
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
High power compact subwoofer: 1 x 21" (installation version)
amplified by LA2Xi / LA4X / LA8 / LA12X
| Low frequency limit (-10 dB) | 29Hz ([KS21_60]) |
| Maximum SPL1 | 138 dB ([KS21_100]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X |
| Nominal directivity (-6 dB) | standard or cardioid configuration |
| Transducers | 1 × 21″ neodymium cone driver |
| Acoustical load | bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 × 4-point terminal block with push-in connection |
| Rigging and handling | external rigging kits |
| Weight (net) | 46 kg / 101 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
