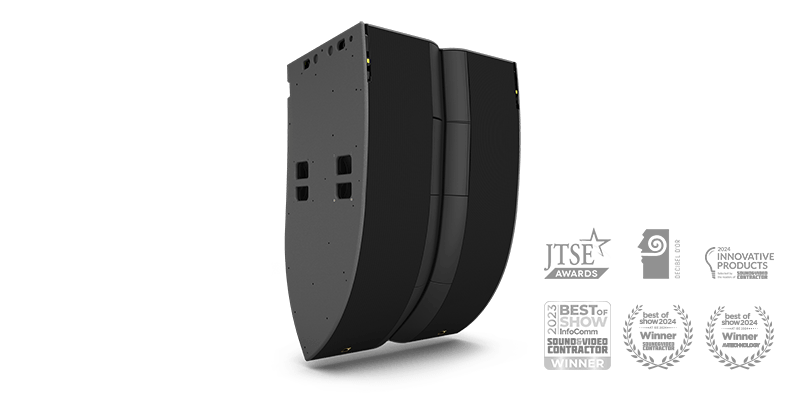

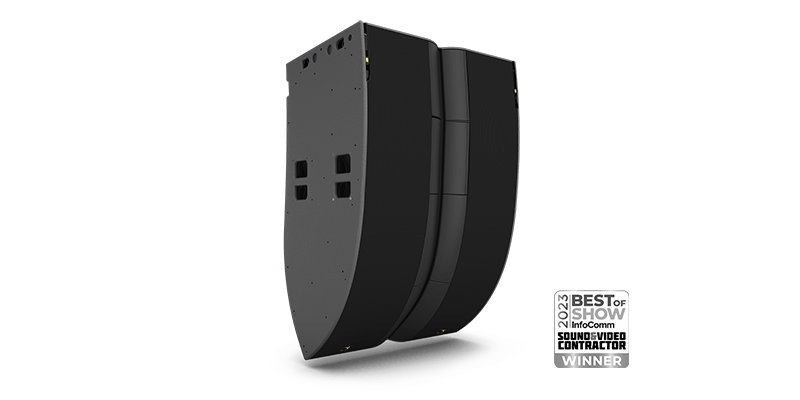

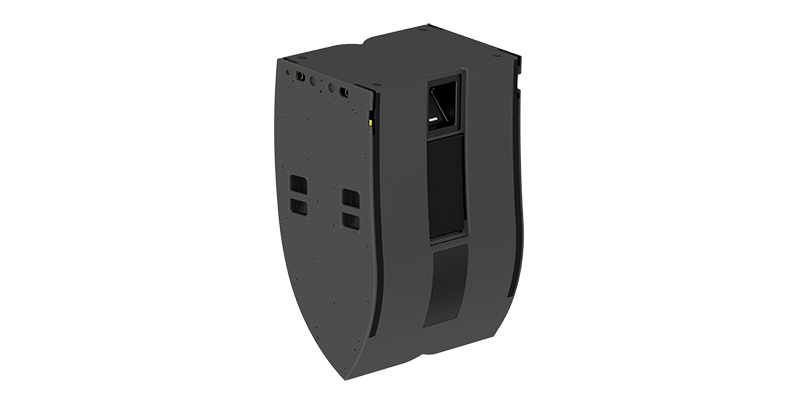

L2D
The Sound. The Shape. The Future.
16-channel PULS for medium and large size events
| Max SPL | 151 dB |
| Bandwidth | 45 Hz- 20 KHz |
| Transducers | LC: 4 x 12" LF: 8 × 10’’ HF: 8 × 3’’ |
| Weight | 149 kg / 328 lb |
| Directivity | V: 60° H: Top two modules Panflex:70° / 90° / 110° Bottom two modules progressive 110° to 140° Integrated cardioid |
Inspiration
San Francisco’s Historic Regency Ballroom Improves Sightlines and Stage Sound with West Coast’s First Permanent L Series Concert Sound System Installation

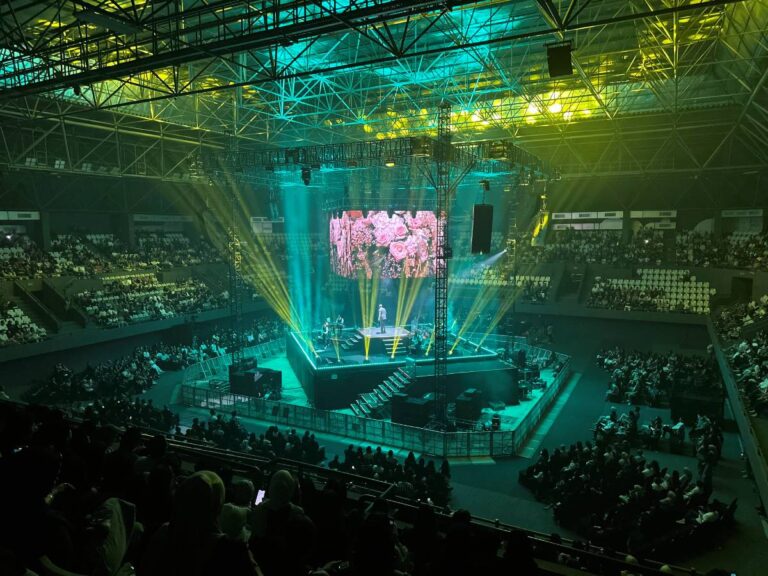

L-Acoustics L-ISA Hyperreal Technology Optimizes Sound Localization and Clarity at Israel Expo Centre’s Tozeret Haaretz Series
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
16-channel active progressive curvature WST®
amplified by LA7.16/LA7.16i
| Usable bandwidth (-10 dB) | 45 Hz – 20 kHz ([L2 70]) |
| Maximum SPL1 | Full element: 151 dB ([L2 70]) First module: 147 dB ([L2 70]) |
| Nominal directivity (-6 dB) | vertical: 60° progressive directivity horizontal: Integrated cardioid |
| Transducers | LC: 4 × 12’’ neodymium cone drivers |
| Acoustical load | LC/LF: Bass-reflex, L-Vents |
| Nominal impedance | LC : 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 x 37-point male connector (32 points used) |

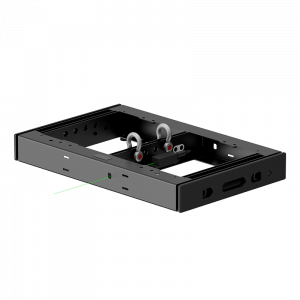

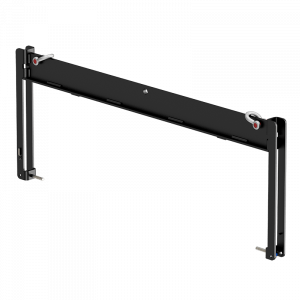

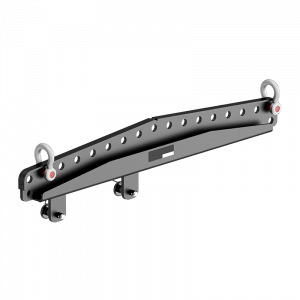

| Rigging and handling | flush-fitting 4-point captive rigging system compatible with L2D |
| Weight (net) | 149 kg / 328 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Rigging components | high grade steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
