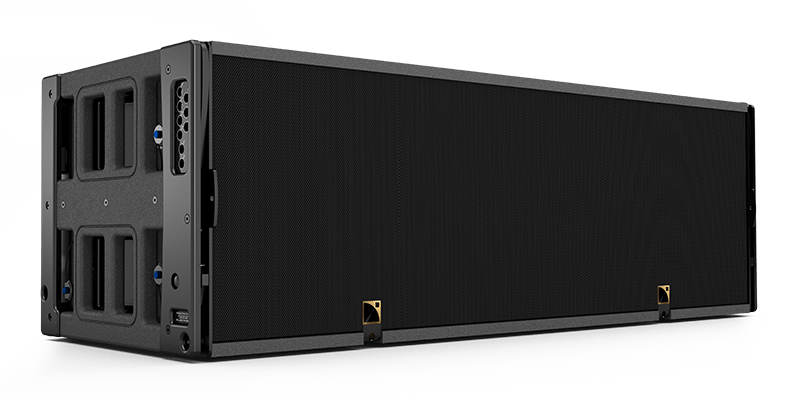

K1-SB
Flyable high power subwoofer
Bass-reflex, dual 15''
Max SPL | 145 dB |
Bandwidth | 30 Hz |
Transducers | LF : 2 x 15" |
Weight | 83 kg / 183 lb |
Directivity | Standard |
POWERFUL
The industry benchmark low-frequency extension for greater contour and throw
SHARP
Clear low-frequency power with L-VENTS™
RUGGED
Built for the road and effortless rigging system
Inspiration
![Victory Church Declares L-Acoustics K Series a Winner featured image](https://www.l-acoustics.com/wp-content/uploads/2024/03/la-victory-4-1-768x512.jpg)
Victory Church Declares L-Acoustics K Series a Winner
K1-SB
K2
KARA II
KS28
LA12X
LA4X
LA7.16
Need more information?
![](https://www.l-acoustics.com/wp-content/themes/l-acoustics/static/img/asset/icon-cloud-download.png)
Check out our Documentation Center for more documentations on this product.
Electroacoustic specs
K1 system subwoofer 2×15"
amplified by LA8 / LA12X
Low frequency limit (-10 dB) | 30 Hz ([K1SB_60]) |
Maximum SPL1 | 145 dB ([K1SB_X]) |
Nominal directivity (-6 dB) | standard |
Transducers | 2 × 15″ cone drivers |
Acoustical load | bass-reflex, L-Vents |
Nominal impedance | 4 Ω |
1 Peak level measured at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors | 1 × 4-point speakON |
Rigging and handling | Captive 4-point rigging system |
Weight (net) | 83 kg / 183 lb |
Cabinet | Premium grade Baltic birch plywood |
Front | Coated steel grill |
Rigging components | High grade steel with anti-corrosion coating |
Finish | Dark grey brown – Pantone 426 C |
IP | IP45 |
Dimensions
Documentation
K1-SB - Owner's Manual
Owner's Manual
english
K1-SB
Download
![](https://www.l-acoustics.com/wp-content/themes/l-acoustics/static/img/asset/icon-cloud-download.png)
pdf
45.49MB
06/12/2024
