The New Hirakata Performing and Visual Arts Centre Fitted with L-Acoustics Kiva II The New Hirakata Performing and Visual Arts Centre Fitted with L-Acoustics Kiva ...

Kiva II-based systems installed in two beautiful sounding, brick-walled performance halls

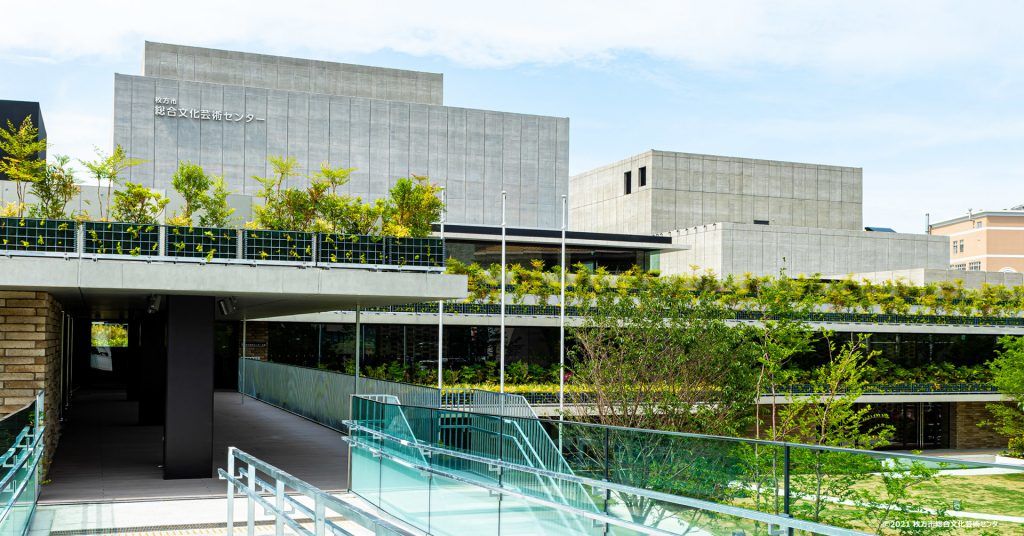

HIRAKATA, Japan – April 2022 – Less than an hour northeast of the multicultural and cosmopolitan city of Osaka lies Hirakata, one of the 33 cities that make up the Osaka Prefecture. In September last year, Hirakata’s government inaugurated the newly built Hirakata Performing and Visual Arts Centre to serve the local community with cultural programming. The center counts both a main and annex building, which includes multi-purpose halls, an art gallery, rehearsal rooms, and spaces for creative art activities.

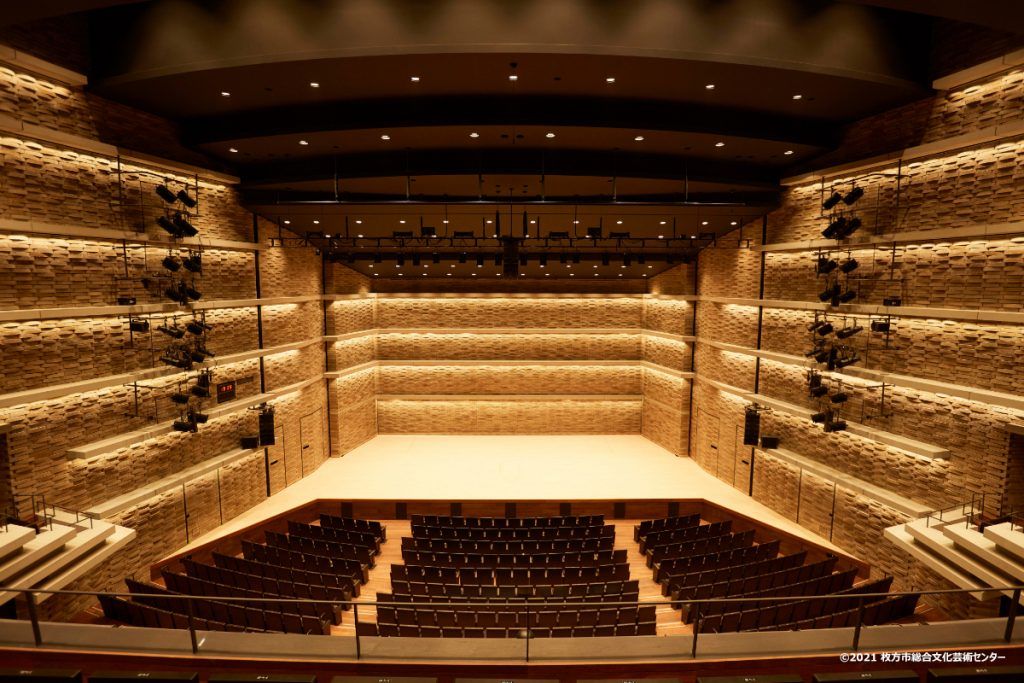

Within the main building lie two halls: the 1,468-seat Kansai Idai Main Hall and the 325-seat Kansai Idai Small Hall, both named after the nearby Kansai Medical University. The Main Hall stages various shows, from music performances and theatrical plays to industry-specific conferences. It can also act as a medium-sized hall, using only its 836-capacity first-floor seating when needed. The Small Hall also holds theatre and music performances, as well as more intimate music recitals. Both halls’ interior walls are brick-lined to create a rich sound.

To add premium audio technology and sound reproduction to both halls’ indoor acoustic environment, the installer chose L-Acoustics Kiva II, supplied by L-Acoustics Certified Provider Bestec Audio. The installation manager explains, “L-Acoustics speakers feature well-controlled directivity to provide clear sound across the audience area.”

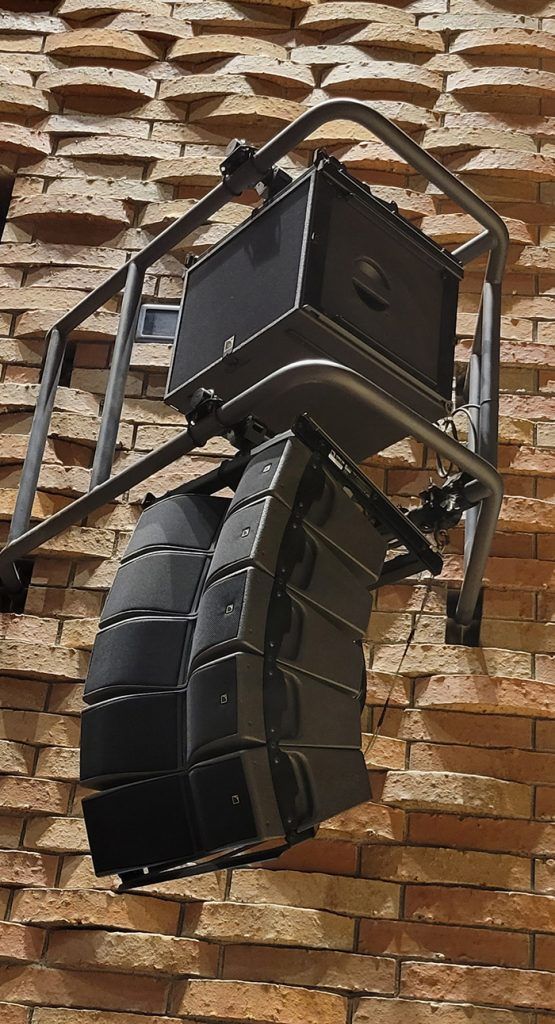

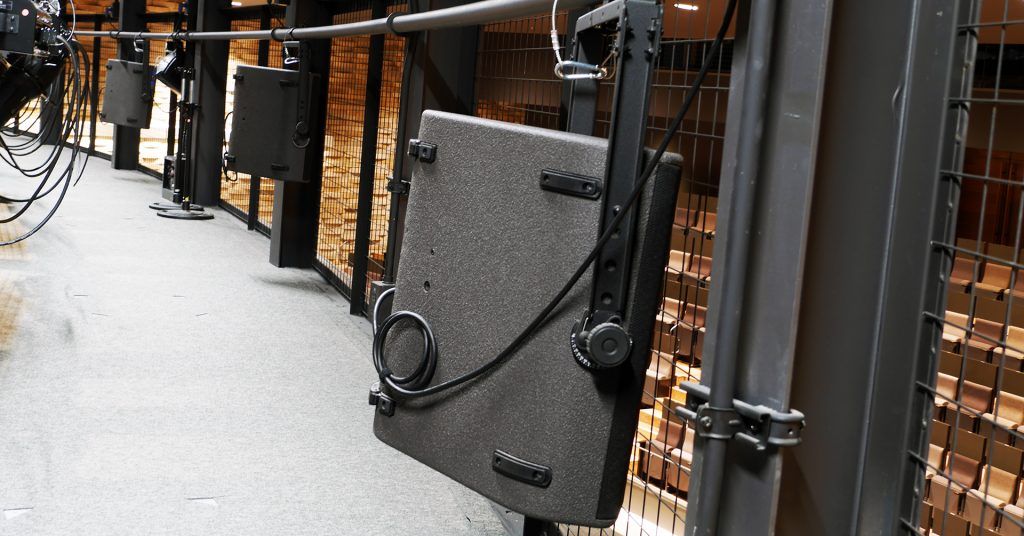

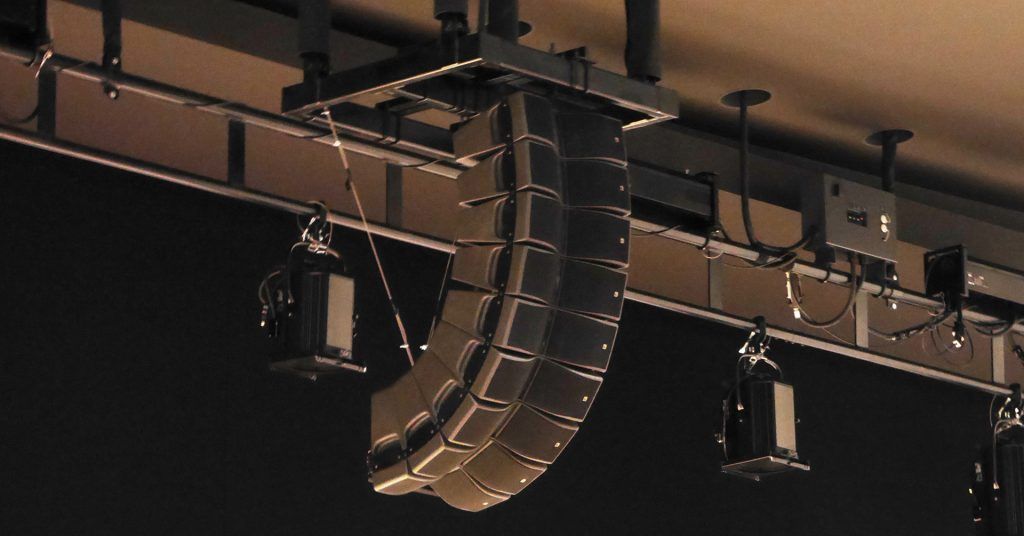

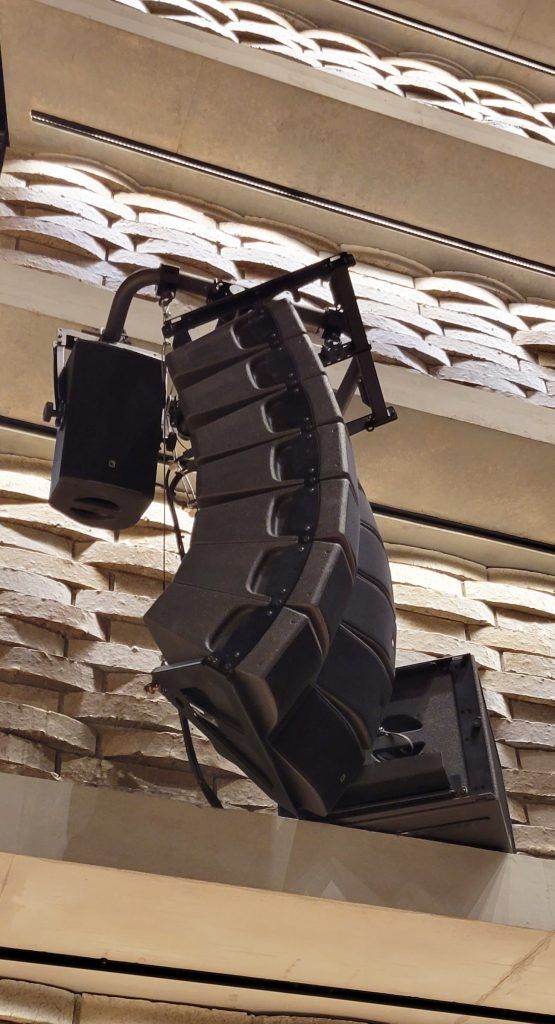

For a safe and hassle-free installation process, the team also depended on L-Acoustics rigging hardware of frames, plates, and clamps. The team installed L/R hangs of seven L-Acoustics Kiva II, topped by one SB15m subwoofer per side. A center proscenium array consists of nine Kiva II, and an X8 enclosure acts as in-fill on each side of the hall. Further X8 coaxials provide coverage for second-floor balcony seats on both sides of the hall, with five X12 enclosures rigged as rear-fill for the third-floor seats. Two X8 and two X12 are used for the stage monitoring system, while eight LA4X amplified controllers drive the whole system.

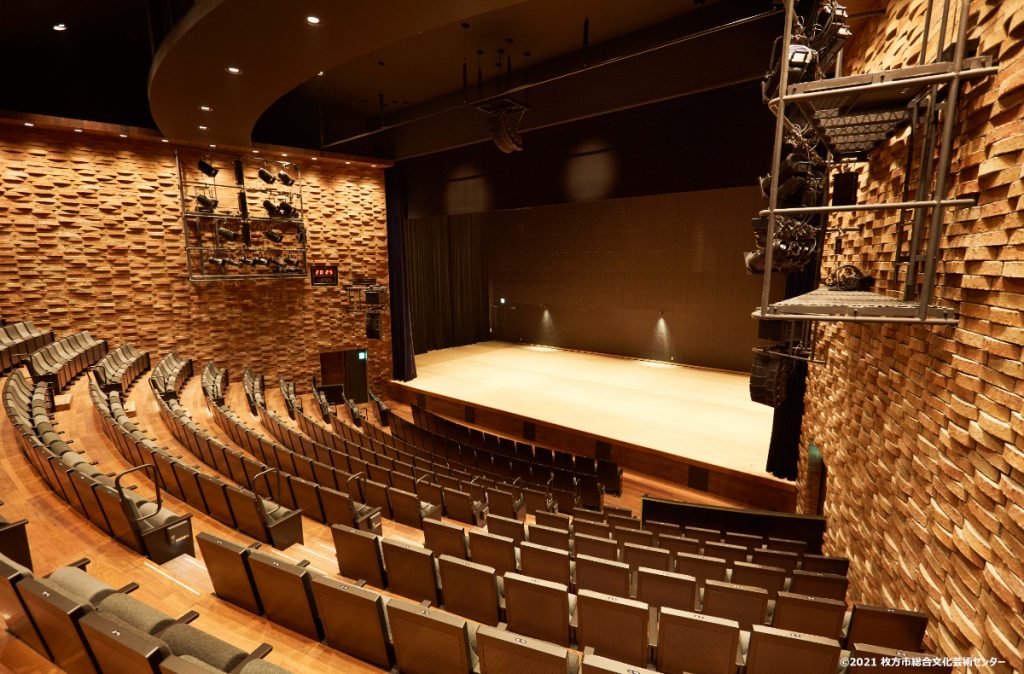

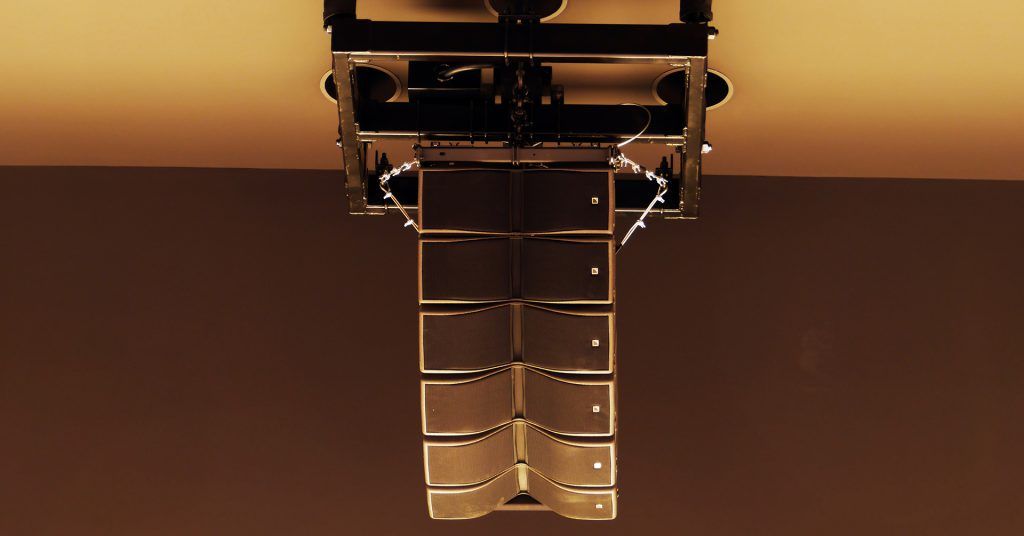

The Small Hall features five L-Acoustics Kiva II per side, topped by a single SB15m subwoofer, with a center proscenium array of six Kiva II. Two compact X8 enclosures provide stage monitoring, with four LA4X amplified controllers to power the system.

The center also has a mobile system of 12 Kara II, two SB18 subwoofers, and four LA12X amplified controllers, shared between the two halls.

“We realized how accurate Soundvision is when we found no difference between the simulation and the post-installation results. The theatre’s technical team will also be able to tap into these resources if they need to make any adjustments further down the road,” explains the installation manager.

Osaka Kyoritz Co. Ltd. operates the system and have expressed their appreciation for the pristine, intimate sound and the ease of manipulation provided by the L-Acoustics solutions. “The main hall had great sound coverage after installation. With Soundvision, my team can determine the optimal angle between speakers, allowing us to use the mobile Kara system in different situations easily. Our frequency response calculations using AutoFilter can easily be imported into LA Network Manager and then rapidly deployed. No detailed speaker tuning is required with these small adjustments, ensuring even more efficient coverage.”

Mr. Inoue from the Hirakata City Facility Maintenance Office concludes, “We just opened in September last year. I have already heard from performers that the systems sound great and can execute performances without technical difficulty. I am very impressed with the sound in both halls. I am sure that many more performers and visitors will be pleasantly greeted with world-class sound in our facilities.”
