Electronics
Amplification, control, processing, advanced protection, and audio distribution, discover the brain power of L-Acoustics systems
Amplified controllers
LA7.16
Multi-channel amplified controller
| architecture | 16 x 16 |
| output power | 16 x 1300 W at 8 ohms |
| power supply | Universal SMPS with PFC |
| inputs | Milan-AVB, AES/EBU, Analog |
LA7.16i
Multi-channel amplified controller for install
| architecture | 16 x 16 |
| output power | 16 x 1300 W at 8 ohms |
| power supply | Universal SMPS with PFC |
| inputs | Milan-AVB or AES67, AES/EBU, Analog |

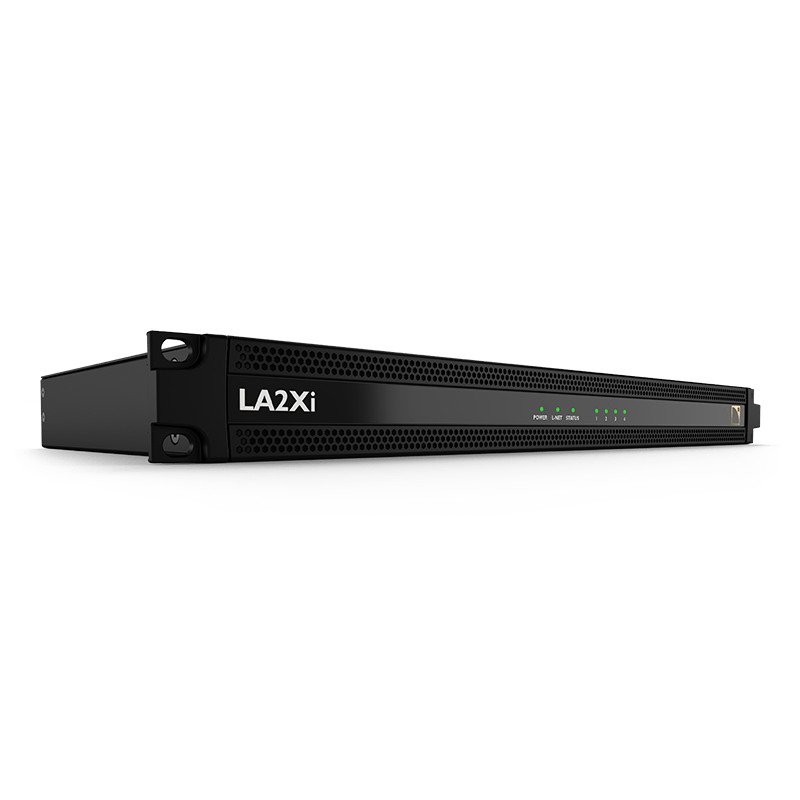

LA2Xi
Amplified controller for install
| architecture | 4 x 4 with bridge modes |
| output power | 4 x 640 W at 4 ohms |
| power supply | Universal SMPS with PFC |
| inputs | Milan-AVB, AES/EBU, Analog |

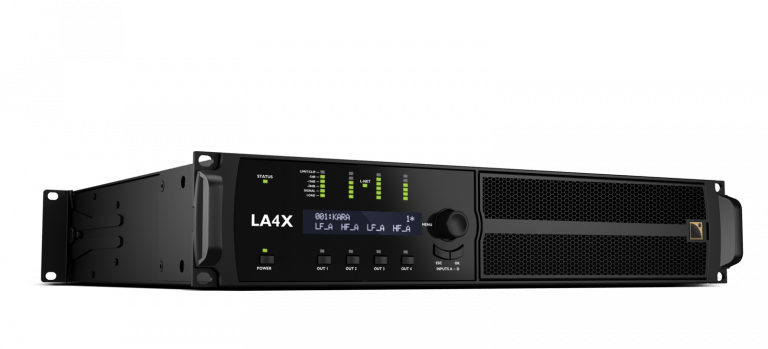

LA4X
Amplified controller
| architecture | 4 x 4 |
| output power | 4 x 1000 W at 4 and 8 ohms |
| power supply | Universal SMPS with PFC |
| inputs | Milan-AVB, AES/EBU, Analog |
LA12X
Amplified Controller
| architecture | 4 x 4 |
| output power | 4 x 3300 W at 2.7 ohms |
| power supply | Universal SMPS with PFC |
| inputs | Milan-AVB, AES/EBU, Analog |
Racks
LA-RAK III
Touring rack
| architecture | 48 channels of amplification |
| output power | Up to 62,400 W at 8 ohms |
| power supply | Three-phase 32 A IEC in/link 30 A NEMA for 110 V |
| inputs | Milan-AVB, AES/EBU, Analog |

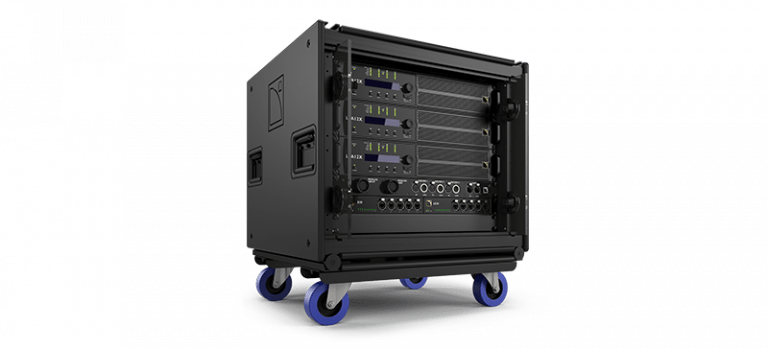

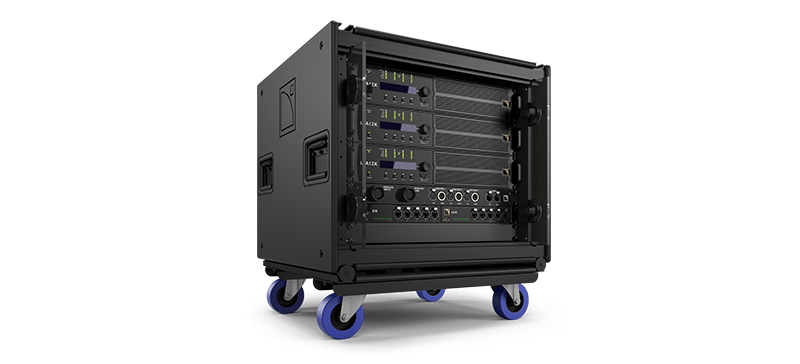

LA-RAK II AVB
Touring rack
| architecture | 12 channels of amplification |
| output power | Up to 40 000 W at 2,7 ohms |
| power supply | Three-phase 32 A IEC in/link 30 A NEMA for 110 V |
| inputs | Milan-AVB, AES/EBU, Analog |
Processors
P1
AVB processor and measurement platform
| architecture | 20 x 16 (+ headphones) |
| busses | 8 DSP busses + Cue Bus |
| I/O | 8 Milan-AVB I/O, 4 Line I/O, 4 AES I/O, 4 Mic/Line inputs (48V) |
L-ISA Processor II
L-ISA multichannel audio processor
| architecture | up to 128 x 128 at 96 kHz License-based output count: 16, 32, 64 or 128 outputs |
| I/O | Milan-AVB I/O, MADI BNC I/O, AES/EBU I/O, headphones out, clocking I/O |
| l-ISA parameters | Pan, Width, Distance, Elevation, Aux send Room engine |
Networking
LS10
AVB Switch, Avnu-certified
| architecture | 10 Ethernet AVB ports |
| ethernet ports | 8 etherCONTM 1 Gb/s 2 SFP cages 1 Gb/s |
| electronics power | IEC inlet with V-lockTM 24 V DC redundant I/O power |
Converters
LC16D
AES/EBU+MADI Network Audio Converter
| architecture | 128 x 128 |
| power supply | Universal SMPS + 2 x Power over Ethernet |
| I/O | Milan-AVB or AES67, MADI, AES/EBU |
